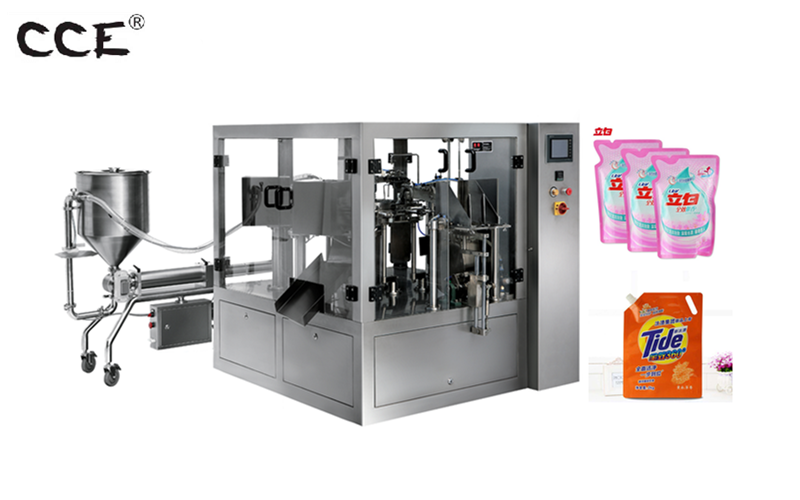

CCE6-200 Liquid & Paste Packing Machine Description
1. Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
2. Automatic checking function: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
3. Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.
4. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clip, easily operate, and save time.
5. The part where touch to the materials is made of stainless steel and according with the request of GMP.
Application:
This automatic packaging machine unit is specialized in liquid and paste such as juice,ketchup,béchamel,capsicum paste,liquid soap and edible oil etc.This machine includes the rotary packing machine can liquid & paste filler.
Main Technical Parameters:
|
Working position |
Six-working position |
|
Bag material |
Laminated film/pe/pp |
|
Bag pattern |
Stand-up with zipper & spout,stand-up ,flat bag, |
|
Max filling weight |
10-1000ml |
|
Filling accuracy |
0.5-1% |
|
Bag size |
W:100-200mm L:100-350mm (could be customized) |
|
Speed |
10-60bags/min |
|
Voltage |
380v 3phase 50/60hz |
|
Total power |
5.5KW |
|
Compress air |
0.6m3/min |
