CCE8-200B Stand-up pouch with zipper Packaging Machine

Stand-up pouch with zipper Packaging Machine Description
 1. Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
2. Automatic checking function: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
3. Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.
4. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clip, easily operate, and save time.
5. The part where touch to the materials is made of stainlesss steel and according with the request of GMP.
Application:
Rotary bag-given packaging machine with different dosing(such as multi-head weigher,liquid filler,auger filler etc.),can be suitable for the automatic packing for granular,powder,liquid,paste etc. Different kinds of products with the premade stand-up pouch with zipper.


Main Technical Parameters:

Model	GD8-200B		GD8-250B	GD8-300B
Working position	eight-working position
Bag material	Laminated film/pe/pp
Bag pattern	Stand-up with zipper
Bag size	W:100-210mm L:100-350mm		W:150-260mm L:150-350mm		W:200-300mm L:200-450mm
Speed	10-50bags/min		10-40bags/min		10-40bags/min
Weight	1200kgs	1400kgs			1500kgs
Voltage	380v 3phase 50/60hz
Total power	3KW	4KW				4KW
Compress air	0.6m3/min

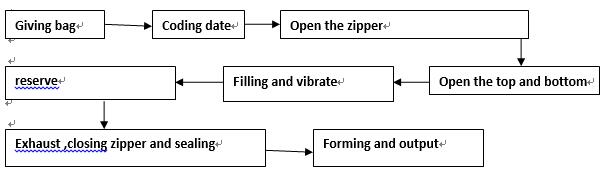

Working Process

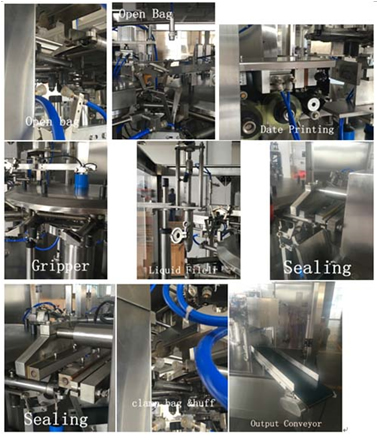

Details of machine parts
