Summarize:

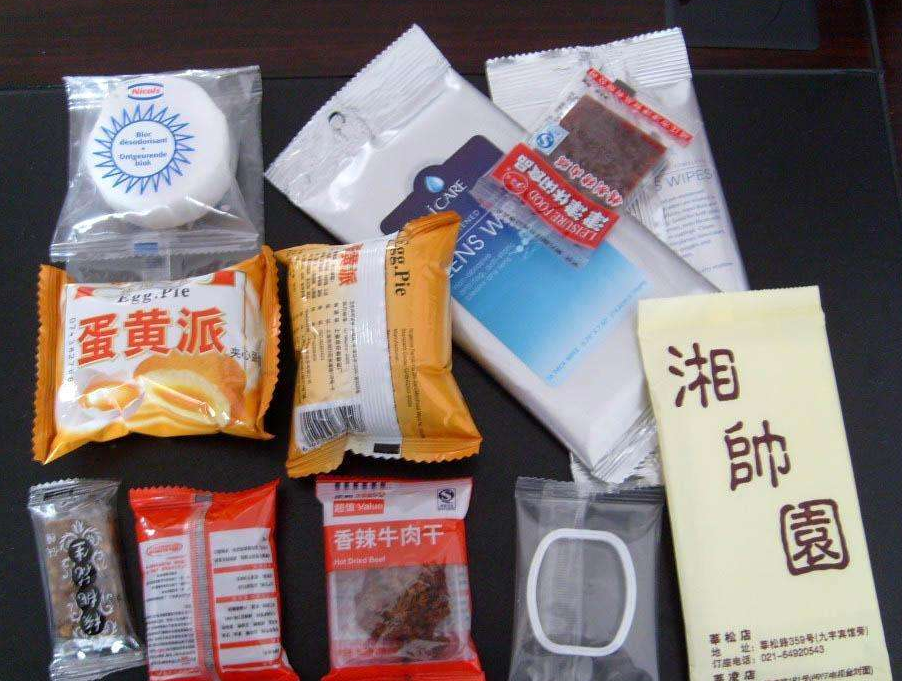

This machine is suitable for biscuits, bread, moon cake, pie, fruit pies, candy, daily necessities, hardware parts, cartons or pallets and other solid regular objects packaging.
Product Features:
1.Compact structure, stable performance, simple operation.
2.Dual frequency conversion control, bag length cutting, without air conditioning, in one step, saving time and film.
3.Imported appliances, touch interface, convenient parameter setting.
4.Self-diagnostic function, clear failure display.
5.High sensitivity photoelectric eye tracking, which makes the sealing and cutting more accurate.
6.Temperature independent PID control, and better suited to a variety of materials coated.
7.Positioned stop function, without sticking knife fees film.
8.Turn the system simple, more reliable, and easier maintenance.
9.All the controls are achieved by software, convenient for function adjusting and technical upgrade, never backward.
10.Lengthened fuselage, plus the material pressed into the brush, so be packaged smoother, more fluid.
Technical Parameters:
Bags size |
L:65~190mm |
W:30~110mm |
|
H:5~40mm |
|
Longitudinal and transverse sealing sealing strength |
>15N/mm² |
Packing speed |
30~230Bags/min |
Packaging film width |
80~250mm |
Power Specifications |
220V 50/60Hz 2.4KW |
G.W. |
800kg |
Dimensions |
3780*640*1560mm |
